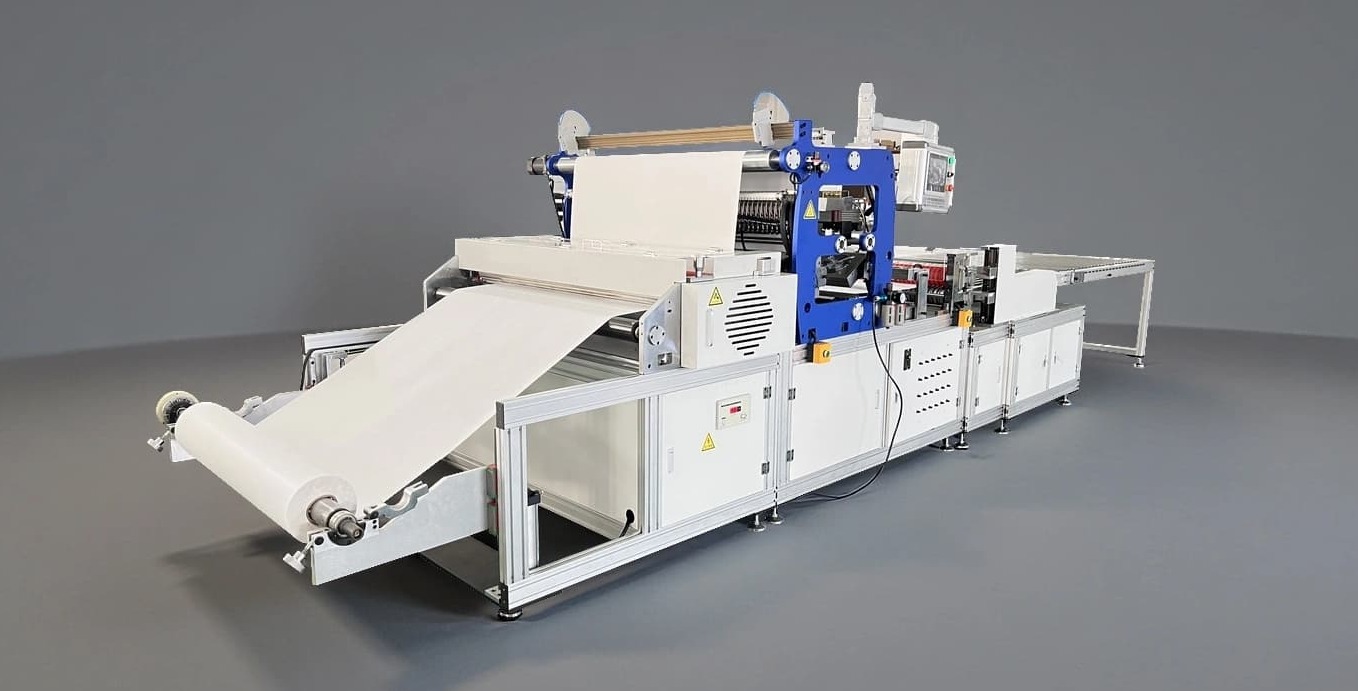

LTWG-1300N 1300mm Pleat Depth Full-auto Hepa Filter CNC Mini Paper Pleating Machine
The machine utilizing high-strength aluminum profiles as the frame, it is not only beautiful, but also makes the machine upgraded. The upper and lower cutting knives are made of alloy steel quenched and processed for durability.
Artikel-Nr :
LTWG-1300NBestellung (MOQ) :
1 SETZahlung :
T/TProduktherkunft :
BENGBU,ANHUIFarbe :
BLUE，CUSTOMIZATIONVerschiffungshafen :
SHANGHAIVorlaufzeit :
AROUND 30-45 DAYSGewicht :
1700KG
PRODUCT DESCRIPTION

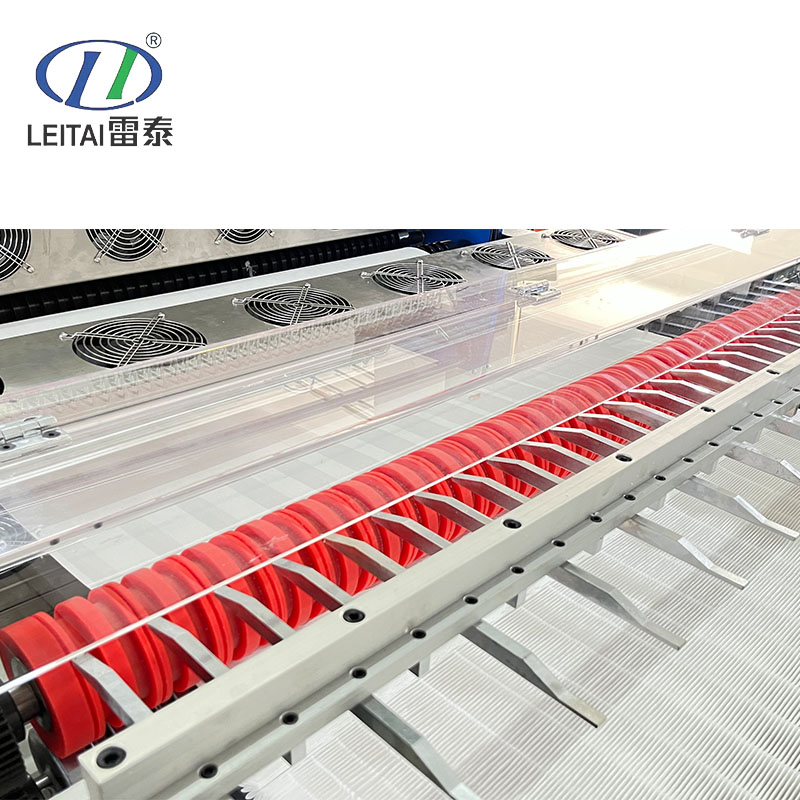

1. Use the upper and lower belts to pull the folded filter material apart, while conveying the filter material, when it reaches the number of counted folds, the cutter rises to cut off the filter material. After the filter material is cut off, the cutter descends to complete the cutting of a product.
2. Utilizing high-strength aluminum profiles as the frame, it is not only beautiful, but also makes the machine upgraded. The upper and lower cutting knives are made of alloy steel quenched and processed for durability.
PRODUCT SPECIFICATIONS
| Model | LTWG-1300N |
| Feeding Speed | 15m/min(According to the height of pleating) |
| Width of Material |
≤1300mm |
| Roll Size Of Raw Material |
≤800mm |

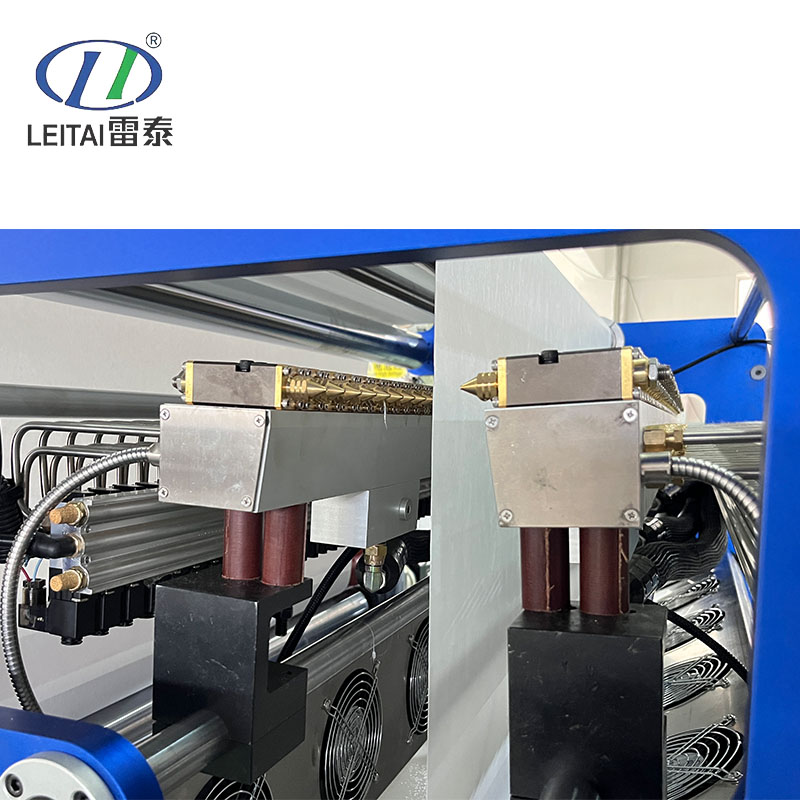

| Number of Glue Injection Nozzle | 48x2 |
| Glue Line Space | 25.4mm |
| Adhesive Method | Cross Injection |
| Folding Height Range | 20-300mm |
| Total Power | 27kw |
| Hot Melt Machine | 50L(2 pcs) |
| Melt Speed | 45kg/h |
| Voltage | 380V/50Hz |
| Air Pressure | 0.6Mpa |
| Net Weight | 1700kg |
| Production | 7185x2145x1720mm |
HOW IT WORKS

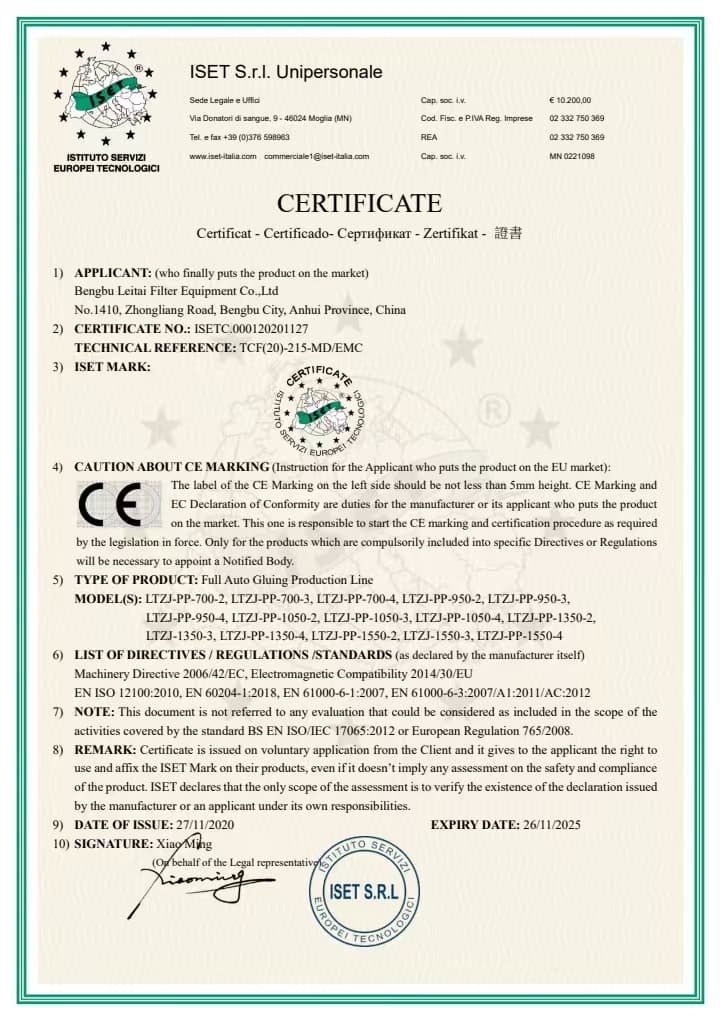

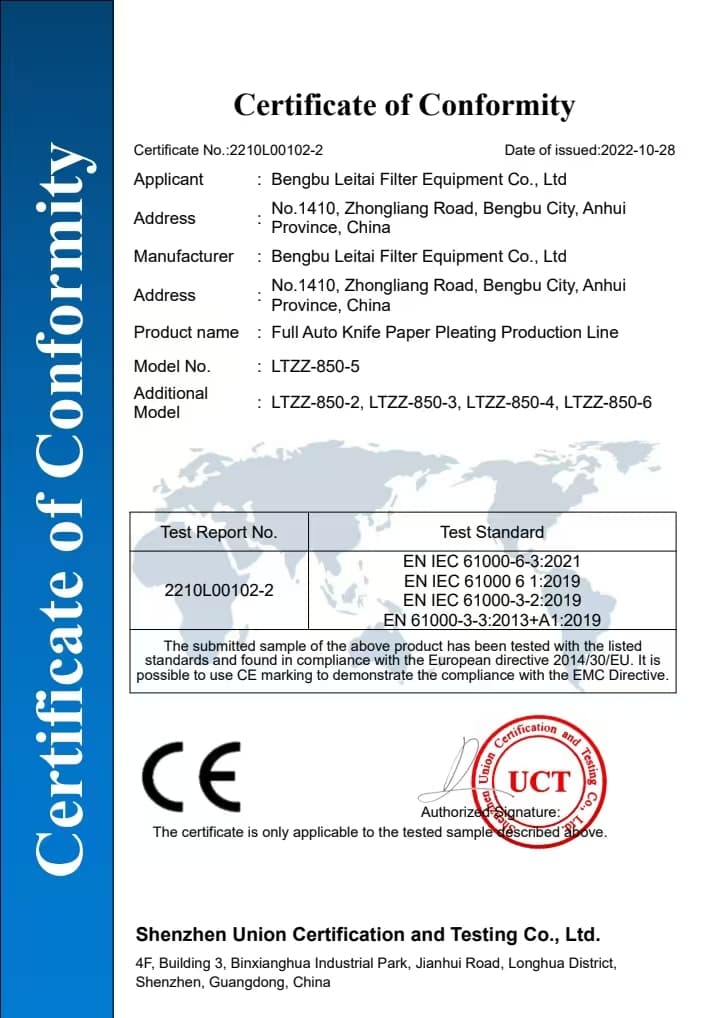

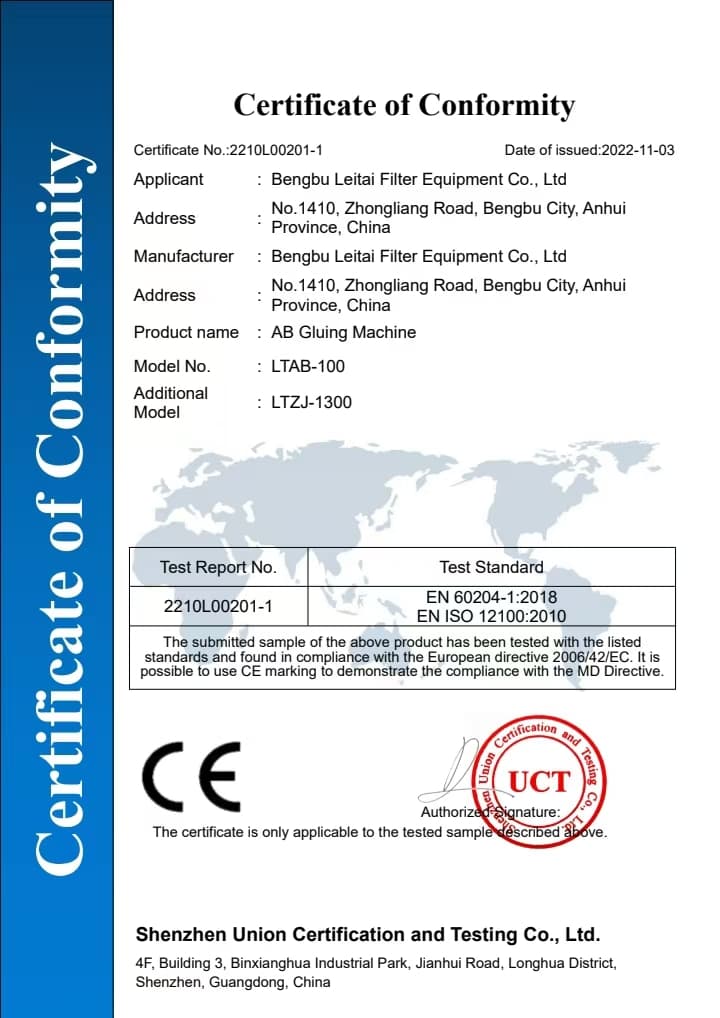

CERTIFICATIONS
COOPERATE PARTNERS
ABOUT US
Bengbu Letai Filter Equipment Co.,Ltd is a professional company specializing in the development,design,production and sales of filter equipment.
The main products are hosuhole purification,industrial purification,water filtration,dust filtration,industry without partition,with partition filter production equipment.
The main equipment is automatic 300 folding height no partition origami production line,high temperature and high temperatuyre resistant glass fiber origami production line,
automatic knife origami production line,PP origami gluing high folding high climbing gluing production line,automatic air conditioning filter element welt fitting machine,origami machine and so on.
The company has senior technical personnel with more than 10 years of rich experience,the development of more than 30 kinds of product.
And will further develop advanced,practical and efficient modelsacording to the actual production in the industry,pay attention to the domestic and international trends,and make relevant contributionsto the filtration and filter industry in China and the world.
WHY CHOOSE US

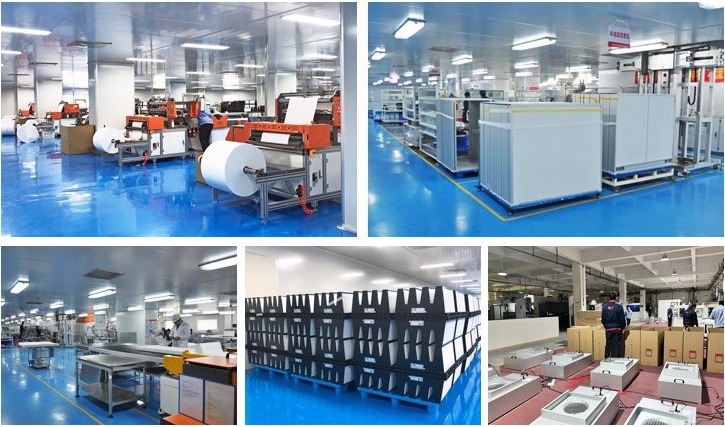

10000 square meters work shop
The factory has sufficient stock supply
24 hours technical and after sales service
Professional maintenance and provision of various accessories
The machine utilizing high-strength aluminum profiles as the frame, it is not only beautiful, but also makes the machine upgraded. The upper and lower cutting knives are made of alloy steel quenched and processed for durability.
Erfahren Sie mehr
Die Produktionslinie unterliegt den Rechten unseres geistigen Eigentums. Sie wurde selbst entwickelt und wird unter Verwendung modernster Produktionsausrüstung nach internationalen Standards hergestellt. Sie kann Produkte mit einer bestimmten Breite und Höhe ohne mechanische Anpassung herstellen. Solange der Bediener die erforderliche Höhe eingibt, können Produkte hergestellt werden, die den Anforderungen entsprechen.
